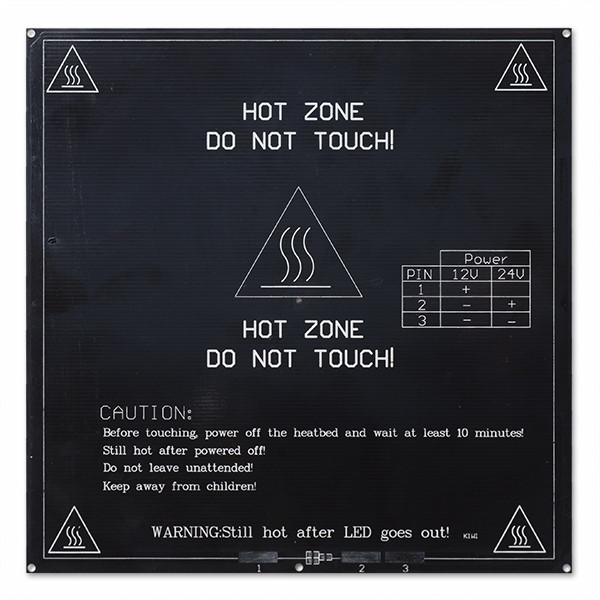

With a heatbed for your 3D printer, ABS and PLA filament are printed with optimal results. A heat bed prevents warping by cooling 3D objects too quickly. Before use, the board must be degreased and covered with Kapton tape.
The MK3 has an extra solder connection especially for 24V.
Temperature:
At a supply voltage of 12V: up to 90ºC (warm-up time about 8 min);
At a supply voltage of 24V: up to 120ºC (warm-up time about 6 min).
The nominal resistance is between 1.3 to 2 ohms.
For ABS, the optimum heated bed temperature is 110ºC.
For PLA, the optimum heated bed temperature is 50ºC-60ºC.
Make sure that the printer's power supply has at least 10A of current left.
Click here for more information (link is external).
Note: this heated bed PCB is delivered without smd LED and resistor, you can order these separately.
