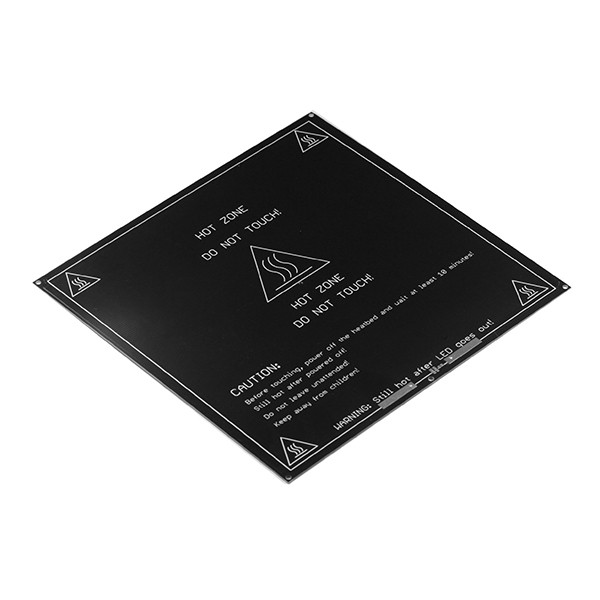

With a heatbed for your 3D printer, your ABS and PLA filaments will print with optimal results. A heat bed prevents 3D objects warping by cooling too quickly. Before use, the board must be degreased and covered with Kapton tape.
The MK2B has an extra solder connection especially for 24V.
Temperature:
At a supply voltage of 12V to 90ºC (warm-up time about 8 min)
At a supply voltage of 24V to 120ºC (warm-up time about 6 min)
The nominal resistance is between 1.3 to 2 ohms.
For ABS, the optimum heated bed temperature is 110ºC.
For PLA, the optimum heated bed temperature is 50ºC-60ºC.
Make sure that the printer's power supply has at least 10A of current left.
Click here for more information (link is external).
Please note: this heated bed PCB is supplied without LED and resistor. You can order these separately.
