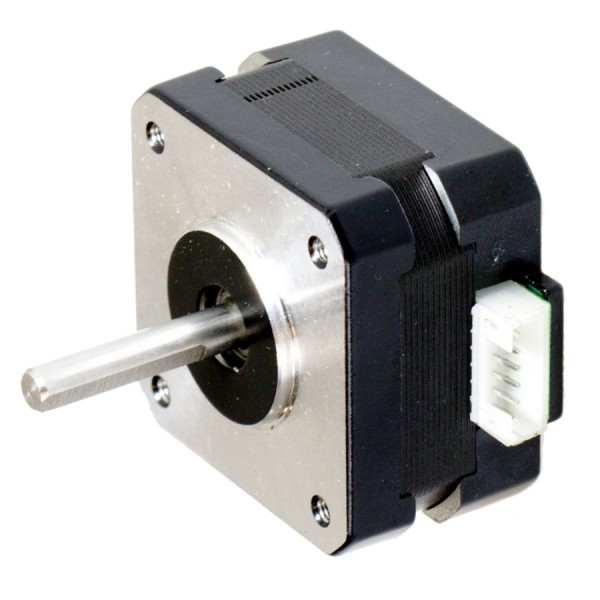

NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm

€16.75 (Incl. 23% VAT)
(€13.62 Excl. 23% VAT)
Delivery in New Year
Product Brand - 123-3D
Description
This extra short high-resolution stepper motor has no less than 400 steps per revolution. And is therefore extremely suitable for projects where high precision is required.

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.

NB:
The sticker on the motor indicates 1.8 degrees per step. But the motor is 0.9 degrees per step.
Specifications
Hazard class: N/A Stepper size: Nema 17
Brand: 123-3D Stepper type: SL42S225MA2B
Current rating: 1.4 A Stepping angle: 0.9
Dimensions: 27 x 42 x 42 mm Tunnel code: N/A
Holding torque: 1.33 kg-cm Packing group: NO
No of leads: 4 Is liquid: no
Our item no: DMO00040 Voltage: 2.8 v
Resistance: 2 Weight: 0.285 kg
Shaft: 5 mm
