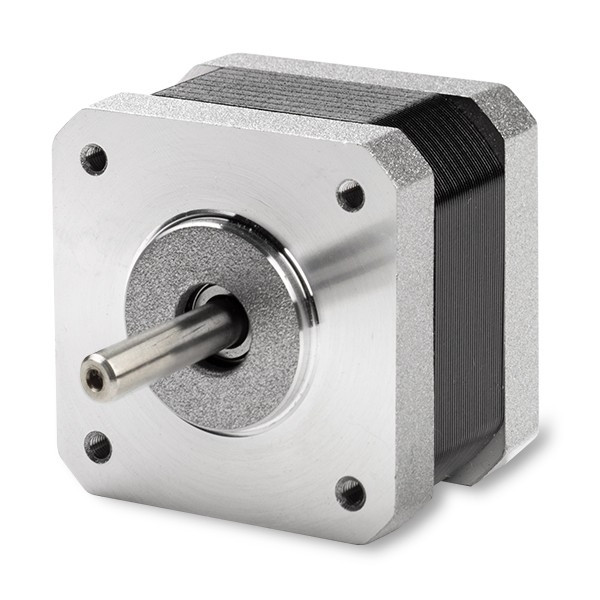

NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm

€18.00 (Incl. 23% VAT)
(€14.63 Excl. 23% VAT)
Delivery in New Year
Product Brand - 123-3D
Description
This high resolution stepper motor with D axis is suitable for most RepRap 3D printers. By double the number of steps per revolution ( 400 steps ), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable

The following colours are used for the wiring:
a + = Black
a - = Green
B + = Red
B - = Blue

We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
Specifications
Hazard class: N/A Shaft: 5 mm
AWG: 24 awg Stepper shaft length: 24 mm
Brand: 123-3D Stepper type: SL42S234MA107
Current rating: 1.2 A Stepping angle: 0.9
Dimensions: 34 x 42.3 x 42.3 mm Tunnel code: N/A
Holding torque: 2.1 kg-cm Packing group: NO
No of leads: 4 Is liquid: no
Our item no: DMO00053 Voltage: 2.04 v
Screwthread type: M3
