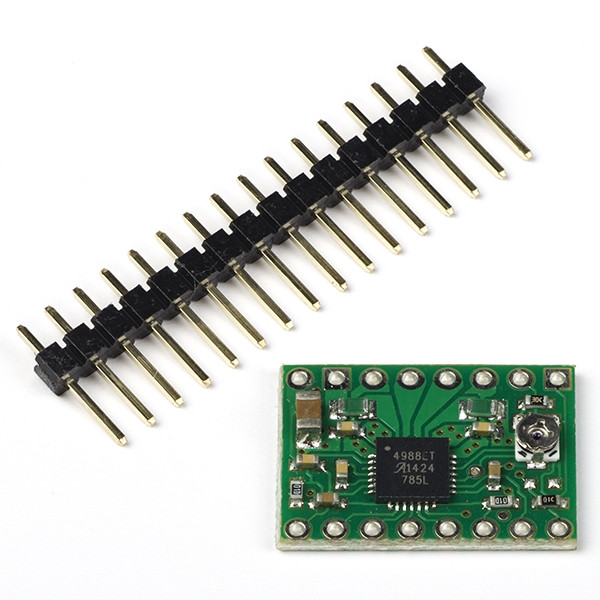

Pololu A4988 Stepper Motor Driver

€13.25 (Incl. 23% VAT)
(€10.77 Excl. 23% VAT)
in stock
Product Brand - 123-3D
delivery 24h
Order now, we can ship this today!
Description
The Pololu A4988 stepper motor driver drives a bipolar stepper motor and has a maximum output current of 2.2A when cooled.

Properties:
  • Simple step control interface
  • 5 Step resolutions: full step, 1/2 step, 1/4 step, 1/8 step, 1/16 step
  • Adjustable current output for achieving higher step speeds above the rated voltage of the stepper motor
  • Intelligent control to automatically switch to the correct power decay: fast decay or slow decay
  • Automatic shutdown in case of too high temperatures or too high currents
  • Supplied with all surface-mount components, including A4988 driver
The supplied headers still need to be soldered.
Specifications
Hazard class: N/A Operating volt vmot: -
Brand: 123-3D Our item no: DSD00001
Chip: A4988 Tunnel code: N/A
Length: 20.3 mm Packing group: NO
Max current: 2 A Is liquid: no
Operating volt logic: 3.5 - 5V Width: 15.2 mm
