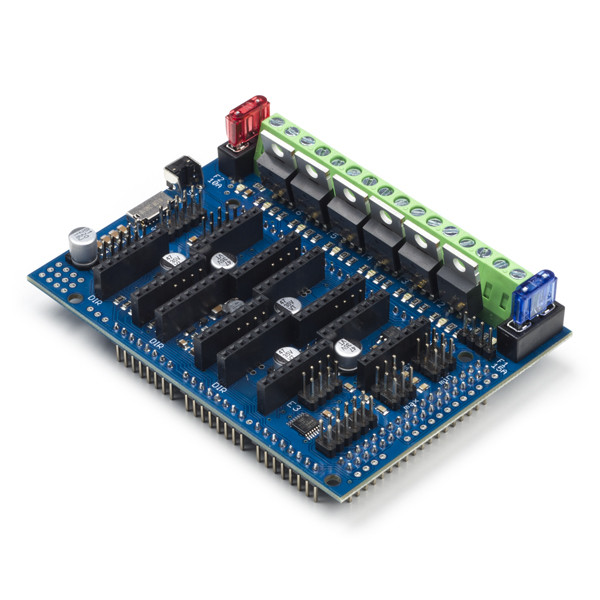

RADDS v1.6 pre-assembled 3D printer board

€87.50 (Incl. 23% VAT)
(€71.14 Excl. 23% VAT)
Delivery in New Year
Product Brand - 123-3D
Description
This RADDS v1.6 - Pre-assembled 3D printer board has a number of useful features such as premium screw terminals, EEPROM, control LEDs for operational and load voltage, input voltage of 10V-25V, automotive fuses, catch diodes on the MOSFETs, heated bed and a electronic control support up to 15A without heat stop.

The pre-assembled board is equipped with the following connections:
  • Standard LCD display (5V) with 4×20 characters (HD44780 compatible)
  • Rotary knob (on LCD screen)
  • SD card
  • 3 servo motors
  • 5 thermistors and an ADC
  • 6 heavy duty MOSFETs (example: 1 print bed, 3 hotends and 2 fans)
  • 6 end stops (Xmin, Ymin, Zmin, Xmax, Ymax, Zmax)
  • 6 on-board steppers: X,Y,Z,E0, E1, E2
  • I2C, SPI, CAN, DAC, RS232 and 8 digital pins available via pin strips
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: 123-3D Packing group: NO
Our item no: DAR00136 Is liquid: no
Stepper driver slots: 6
