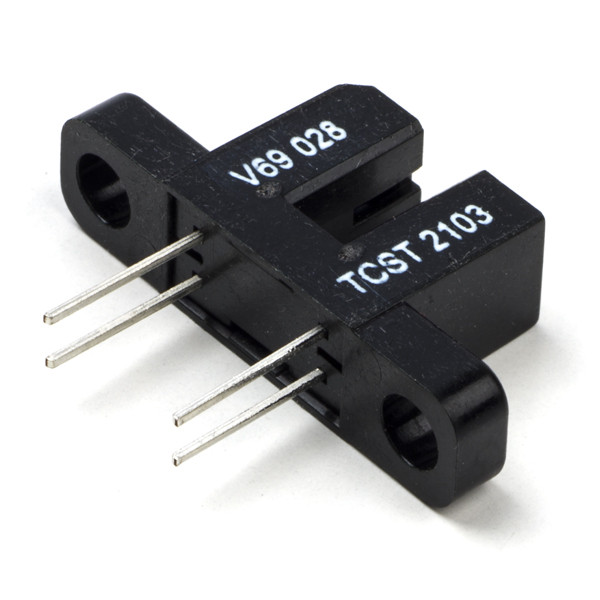

TCST2103 Opto end stop (through hole)

€2.95 (Incl. 23% VAT)
(€2.40 Excl. 23% VAT)
Delivery in New Year
Product Brand - 123-3D
Description
This TCST2103 Opto endstop is a transmissive sensor. It contains an infrared emitter and a phototransistor, which are placed opposite each other on the optical axis. The lead package blocks visible light. You use the TCST2103 to build your own opto endstop.

Properties
  • Function: photo interrupter
  • Maximum collector current: 100mA
  • Maximum collector transmit voltage: 70V
  • Maximum current throughput: 20%
  • Max forward current: 60mA
  • Maximum operating temperature: 85°C
  • Maximum power distribution: 250mW
  • Max reverse voltage: 6V
  • Minimum operating temperature: -55°C
  • Fixing: bore
  • Number of channels per chip: 1
  • Peak Wavelength: 950nm
  • Number of pins: 4
Show more Show more
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: 123-3D Packing group: NO
Dimensions: 11.1 x 24.5 x 6.3 mm Is liquid: no
Our item no: DAR00143
