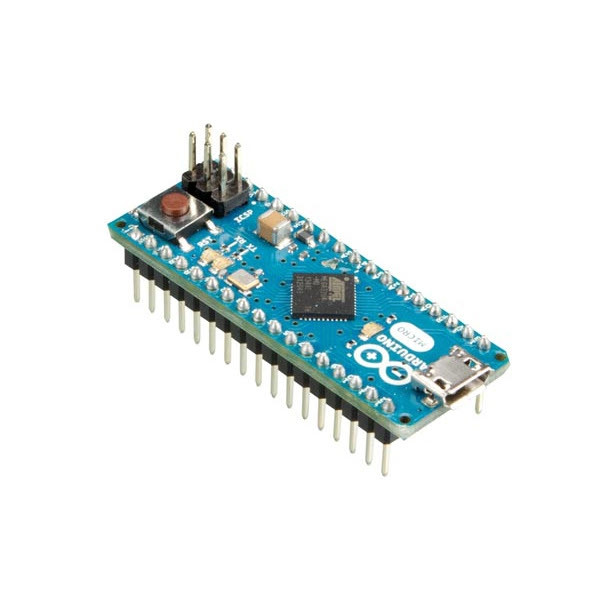

Arduino Micro (original)

€31.50 (Incl. 23% VAT)
(€25.61 Excl. 23% VAT)
5-7 day delivery
Description
The Arduino Micro is a small microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM output and 12 as analog input), a 16Mhz crystal, a micro USB connection, an ICSP header and a reset button. The board contains everything to let you get started right away.

The ATmega32UA has a built-in USB which makes the extra processor for the USB connection unnecessary. It is also possible to connect the Arduino Micro as a mouse or keyboard to a PC.
Specifications
Hazard class: N/A Our item no: DAR00002
Brand: Arduino Tunnel code: N/A
DC current for 3.3V pin: 50 ma Packing group: NO
DC current per I/O pin: 20 ma Is liquid: no
Input voltage: 7 - 12V recommended Weight: 0.013 kg
Length : 48 mm Width: 18 mm
Operating volt logic: 5V
