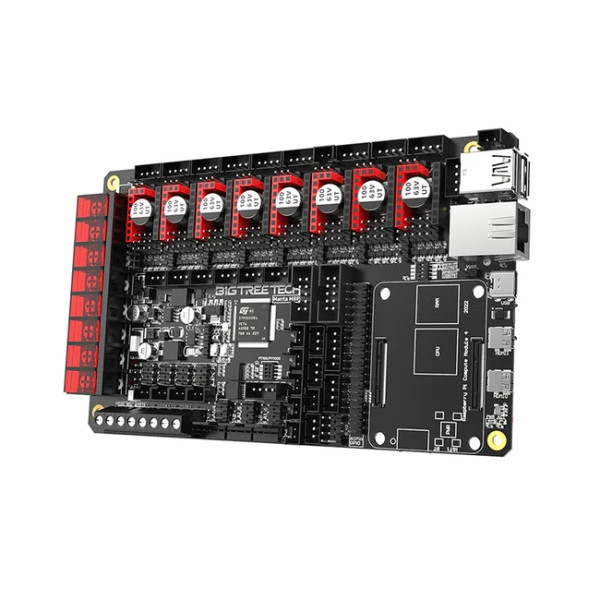

With the M8P from BigTreeTech's Manta series you will achieve the ultimate 3D printing experience! The board is optimised for use in combination with the popular Klipper software for effortless control of up to eight stepper motors.
Thanks to the many expansion options of the Manta M8P, you can fully adapt your 3D printer to your wishes. In addition to the LAN port, two HDMI ports, 3 x USB 2.0 and USB type-C port, there are headers for connecting LCD screens, an automatic bed leveling sensor, 5 fans, 5 thermistors and 4 heating elements next to the heated bed. The 40-pin GPIO header, CAN and SPI headers allow further expansions. If you use stepper motor drivers that support higher voltages, you can set the M8P per driver to use 24-56V from the HV-IN port.
This control board is a good choice to replace the current electronics in your VzBot, Voron V2.4 etc.
Note: You need the Raspberry CM4 or CB1 module from BigTreeTech which is sold separately. The HDMI1 output only works with the CM4 module.
