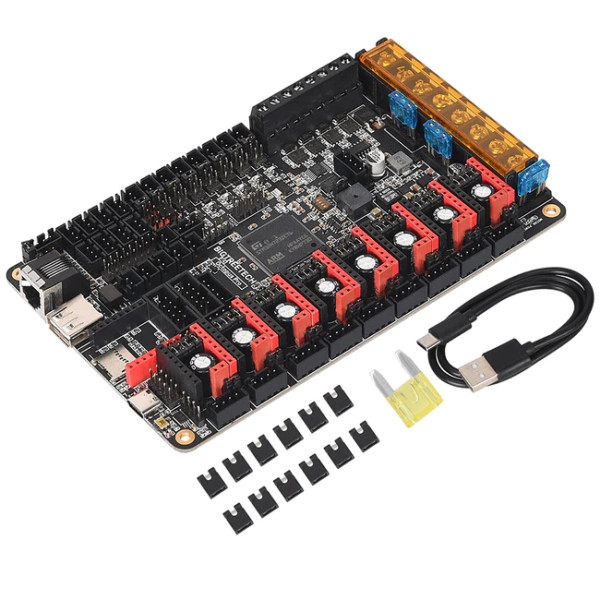

BigTree Tech Octopus Pro (F429)

€84.50 (Incl. 23% VAT)
(€68.70 Excl. 23% VAT)
in stock
Product Brand - BigTreeTech
Description
With the BigTreeTech Octopus Pro (F429) you choose a very stable and safe 3D printer motherboard. It supports Raspberry Pi and Octoprint operating systems and Klipper, Marlin and RRF firmware. The firmware can be updated via DFU mode, where the firmware does not require a bootloader, but is sent directly to the board from the PC. The Octopus Pro has several versions of MCUs, so you can choose the one that suits your needs. It is equipped with a 32-bit ARM-level Cortex-M4 series STM32H723ZET6/ STM32F407ZET6 / STM32F429ZGT6 / STM32F446ZET6 chip. The frequency goes up to 168 MHz and the flash is 1 MB.

Other functionalities
  • 8 powerful motor drives for a more stable unit
  • 8 isolation chips that protect the motherboard and a motherboard protective level conversion chip that converts a 3.3 V signal into a 5 V signal
  • STEP/DIR mode, UART mode and A-SPI mode
  • Connect 6 CNC fans and 2 normal fans
  • Compatible with NTC100K & PT100/PT1000 high temperature
  • Supports up to 60 V
  • Supports proximity sensors, jumper optional pull-up resistor and BL touch
  • USB Type-C connection
Specifications
Hazard class: N/A Operating volt vmot: -
Brand: BIGTREETECH Processor: ARM CORTEX M4
Chip: STM32F446ZE Processor speed: 168
Flash memory: - Our item no: DAR01181
Input voltage: 15-28V Stepper driver slots: 8
Dimensions: 160 x 100 mm Tunnel code: N/A
No of thermistors: 4 Packing group: NO
Operating volt logic: - Is liquid: no
