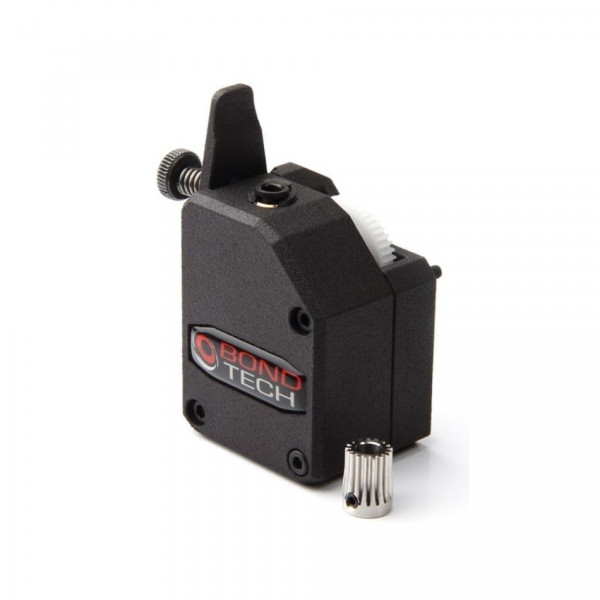

The mirrored Bondtech BMG has a dual drive for trouble-free material feeding. This extruder gives you the highest performance, reliability and precision. The filament will no longer slip or show signs of wear. The BMG extruder is a universal solution suitable for both Bowden and direct drive applications. It also has a built-in fitting for the E3D hotend and fits on NEMA17 stepper motors. The housing parts are professionally SLS printed in nylon for maximum strength and precision.
The Bondtech BMG is a compact powerhouse with hardened steel drive wheels, using an internal gear ratio of 3:1. Print in high resolution with small nozzles or fast prints with large nozzles, you can always expect a overwhelming result.
In addition, it is possible to work with special filaments, thanks to the high reliability of the extruder. For example, experiment with nylon, carbon and flexible filament. This extruder is designed for 1.75mm filament, but has been tested to tolerances between 1.5mm and 2.0mm to ensure high performance. Furthermore, thanks to the 'quick-release' lever, changing material is very easy.
E-step setting:
415 (1.75mm) steps/mm
