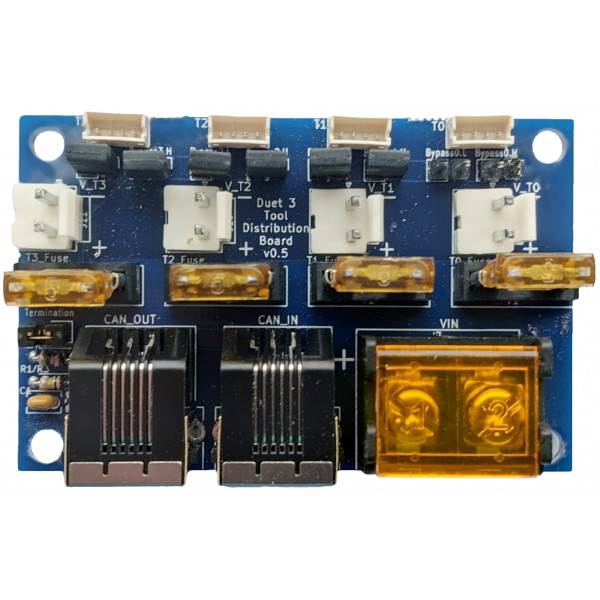

With the Tool Distribution Board V0.5 from Duet3D you can easily connect multiple toolboards to the Duet 3 CAN-FD bus.
This tool distribution board has the following properties:
- 4 JST-VH connectors for power supply for toolboards (5A fuses included).
- 2 RJ connectors for CAN bus to connect to the Duet 3 mainboard and expansion board.
- 4 2-pin jumpers to remove unused CAN connectors from the tool board.
- CAN bus termination jumper if you do not use the CAN_OUT RJ11 port.
