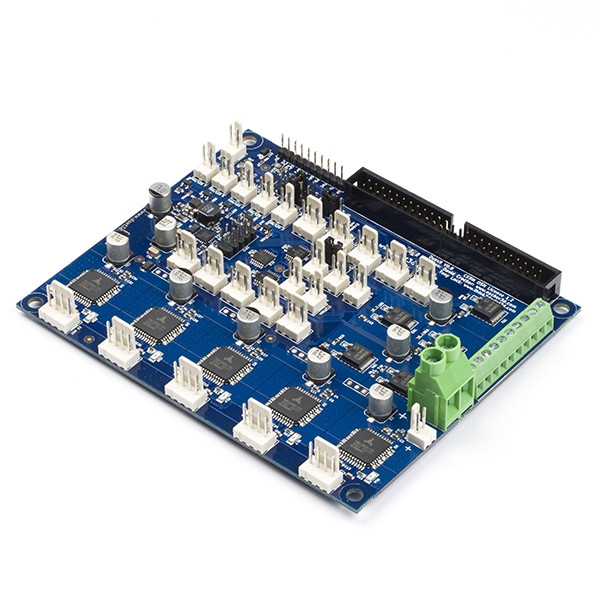

Duet3D dueX 5-channel expansion board v0.11

€132.50 (Incl. 23% VAT)
(€107.72 Excl. 23% VAT)
Delivery in New Year
Description
This DueX-5 expansion board for the duet ethernet or Wi-Fi offers the following options:
  • 5 x tMC2660 stepper motor driver
  • 5 x extruder heating element output
  • 5 x servo output with 5V and 5V signal levels
  • 5 x end stop input with LED indication. Can also be used as an output (3.3V and 5V compatible)
  • 6 x fan output: 5V -12V switchable
  • 4 x general io pins
  • 12V smps
  • 2 x thermistor inputs
  • Connections for 2 thermocouple or PT100 daughter boards
  • Optional 5V external power input to power servos and fans
The board comes with loose molex connectors and the wide ribbon cable for the connection to the mainboard (length 10cm)
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: Duet 3D Packing group: NO
Dimensions: 123 x 100 mm Is liquid: no
Our item no: DUE00041
