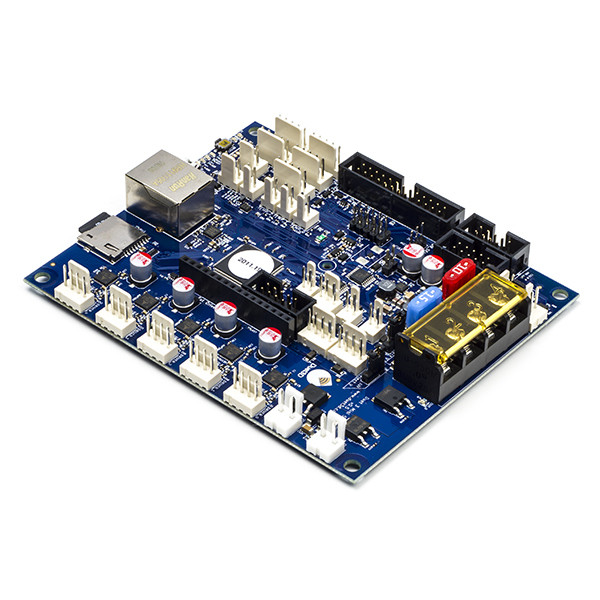

The duet 3 mini 5+ balances value and performance, aimed at small and medium-sized machines that don't require the high power of the duet 3 mainboard 6HC. It provides 5 built-in drivers and normal addition of heaters, fans IO, LCD, etc.
Specifications:
- Powerful 32-bit processor (ARM Cortex M4 @ 120MHz)
- Ethernet module
- 2209 stepper drivers, up to 256 microsteps.
- CAN-FD bus supporting next generation Duet3D expansion cards, smart tools and custom add-ons.
- 7 PWM outputs with different current capacities support heated bed, 2 extruders and 4 fans. 7 IO ports for end stops, probes, filament sensors and other sensors.
- 3 Thermistor / PT1000 inputs and support for 2 PT100 or thermocouple inputs via the optional daughterboards.
- Set up your printer and update the firmware via the web interface.
- All common 3D printer geometries are supported.
View
the extensive documentation (external).
