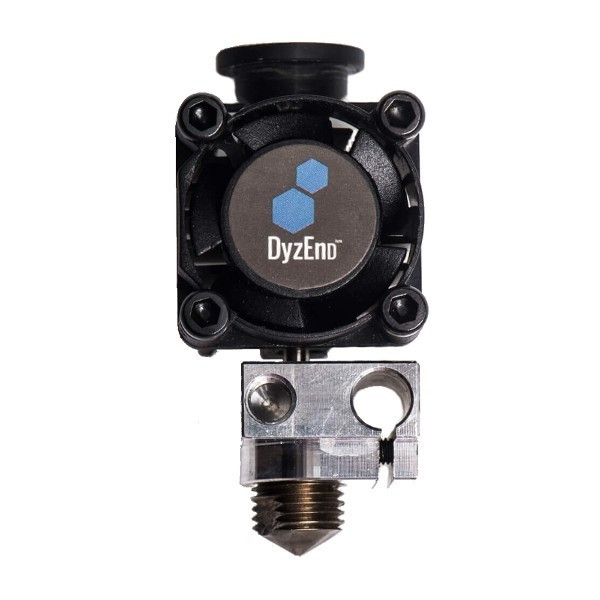

Dyze DyzEnd-X 12V/40W hot end for 1.75mm filament, 0.4mm

€142.00 (Incl. 23% VAT)
(€115.45 Excl. 23% VAT)
Delivery in New Year
Description
The DyzEnd is a hot end with a titanium heatbreak, which means it can handle high printing temperatures very well. Temperatures of 500°C are achievable. Due to its compact construction, the height loss of your 3D printer is limited

A very hard nozzle ensures a long life, even with highly corrosive materials. A unique washer makes it possible to change the nozzle without heating up. High throughput speeds can be achieved with the DyzeEnd

The following parts are included:
  • DyzEnd-X
    • heat sink
    • heat break
    • heat block
    • nozzle (0.4mm)
    • seal washer
  • Fan with connector
  • Heating element with connector
  • Temperature sensor ( #define TEMP_SENSOR_0 66 )
  • Extension cables 3 x 100cm
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: Dyze Design Packing group: NO
Filament diameter: 1.75 mm Is liquid: no
Nozzle diameter: 0.4 mm Voltage: 12 v
Power rating: 40 W Weight: 0.052 kg
Our item no: DYZ00000
