The E3D lite hot end is the ideal hot end for standard 3D printing applications with PLA and ABS filament. The Lite6 is the little brother of the V6 and suitable for standard materials. Unlike the V6, Lite6's PTFE tube runs all the way through, so that it can easily be replaced in the event of a defect or jam.
Below are the main specs of the Lite6:
- print speed of 20-50mm/s;
- easy to use;
- suitable for filament with a diameter of 1.75mm;
- compatible with V6 nozzles, Volcano and Bowden systems;
- maximum temperature 245°C (PLA & ABS).

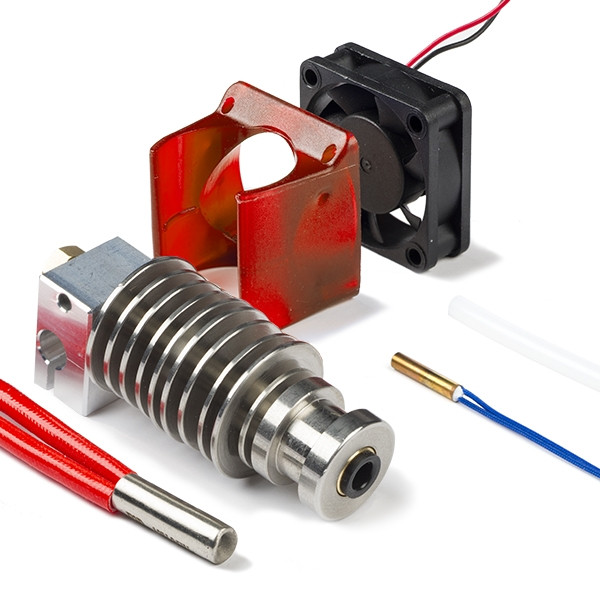

The kit consists of the following original parts:
- E3D heatsink with Bowden coupling (original)
- E3D aluminium heater block (original)
- E3D brass nozzle (0.4mm) (original)
- E3D thermistor cartridge 100k Ohm Semitec (original)
- E3D injection molded fan duct (colour: red)
- E3D fasteners (original)
- E3D silicone sock for V6 hot ends (original)
- Ceramic heating element 12V/30W (original)
- Axial fan 30 x 30 x 10mm 12V
- PTFE tube, 10cm
For the Marlin firmware you need the following thermistor setting: #TEMP_SENSOR_N 5
