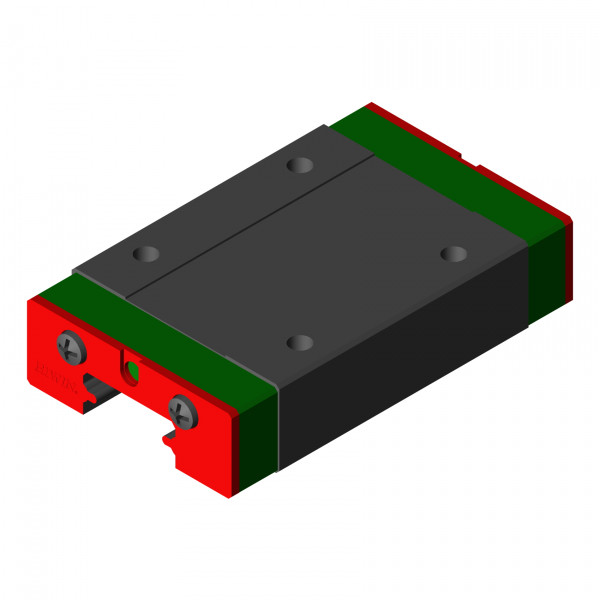

HIWIN MGN12H linear slider block

€53.50 (Incl. 23% VAT)
(€43.50 Excl. 23% VAT)
5-7 day delivery
Product Brand - HIWIN
Description
This HIWIN MGN12H slider block is suitable for the MGNR12R Profile Rail Guide rails.
MGN12H Dimensions
huh : 13.0 mm W : 27.0 mm C : 20.0 mm G N : ø 2.0 mm
H 1 : 3.0 mm B : 20.0 mm L 1 : 32.4 mm M x L : M3 x 3.5 mm
N : 7.5 mm B 1 : 3.5 mm l : 45.4 mm H 2 : 2.5 mm
Specifications
Hazard class: N/A Our item no: DFC00088
Brand: HIWIN Tunnel code: N/A
Dimensions: 10 x 45.4 x 27 mm Packing group: NO
Material: RVS Is liquid: no
