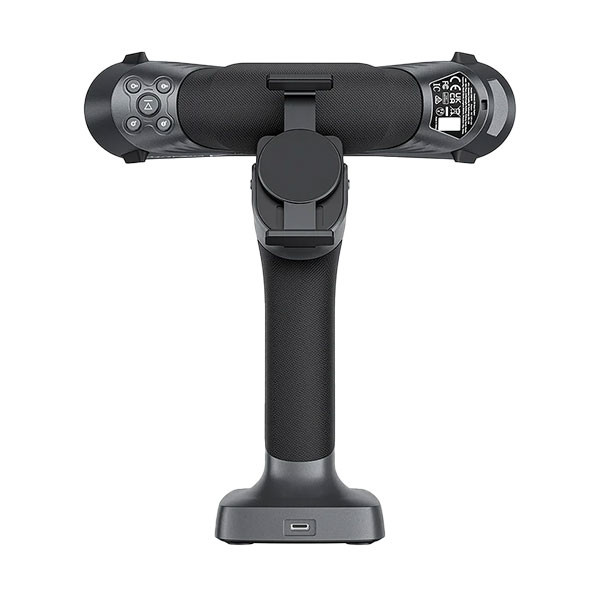

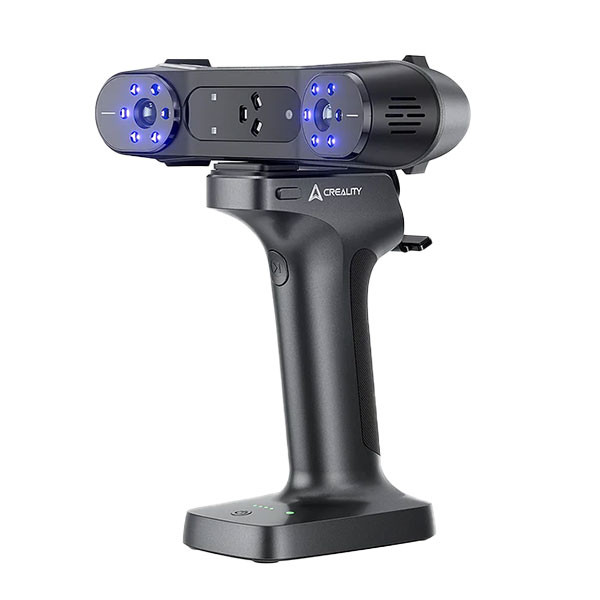

Creality 3D RaptorX 3D Scanner

€3,480.50 (Incl. 23% VAT)
(€2,829.67 Excl. 23% VAT)
5-7 day delivery
Product Brand - Creality3D
Description
Embrace innovation with the RaptorX 3D scanner, Creality’s new wireless hybrid blue laser and NIR 3D scanner. The RaptorX is the first of its kind and ideal for quickly scanning both medium and large objects, such as a car. By scanning in 24 bit full colour, you can bring all your scans to life immediately.

3-in-1 laser
This 3-in-1 laser uses 34 cross laser lines, 7 parallel laser lines and structured NIR light. The crossed laser lines make it possible to quickly scan objects between 5 - 4000 mm. Up to 1,020,000 points per second can be captured. In combination with the 7 parallel laser lines, you can scan efficiently and capture exceptional details. The 2.3 megapixel 3D imaging camera scans with precision, so no details will be lost. By scanning with infrared light, you can achieve a frame rate of up to 30 fps. When scanning with laser lines, this can be up to 60 fps. When you scan objects with NIR technology, they must be between 150 - 2000 mm. It is also possible to scan people.

Versatile
You can also easily take the RaptorX outside thanks to the battery capacity of no less than 35400 mWh. The blue laser light performs fantastically both indoors and outdoors and you do not have to spray black and metal objects in advance to make good scans. The one-shot technology stabilizes your scans, allowing you to scan smoothly and efficiently. This way you can also make perfect scans outside without any worries.

Other features
The RaptorX scanner is a portable wireless 3D scanner that allows you to easily send data. You can also monitor your scan in real time from your phone, when you use the 'mirroring' function. The advanced lossless data compression algorithm makes it possible to easily send scans from the 3D scanner to the computer using wifi 6 AX6000. You can charge the battery for 80% within an hour and a half. This lightweight 3D scanner (405 g) uses the user-friendly CrealityScan software.
Specifications
Hazard class: N/A Tunnel code: N/A
Brand: Creality3D Packing group: NO
Dimensions: 74 x 50 x 215 mm Is liquid: no
Input voltage: 12V Weight: 0.405 kg
